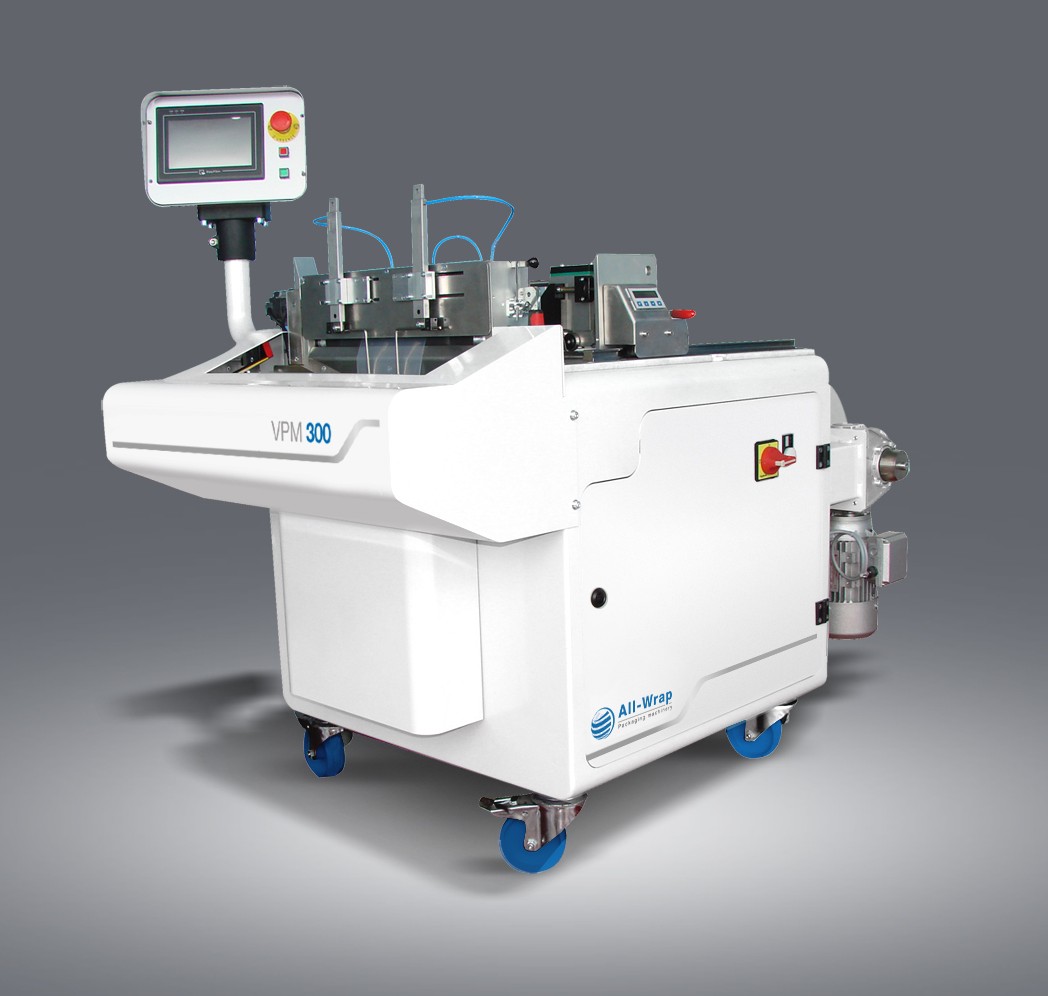

The VPM 300 pouching machine produces vertically peelable packaging from medical-grade sterilization tubing made of paper/film, Tyvek®/film, or other composites such as aluminum/aluminum.

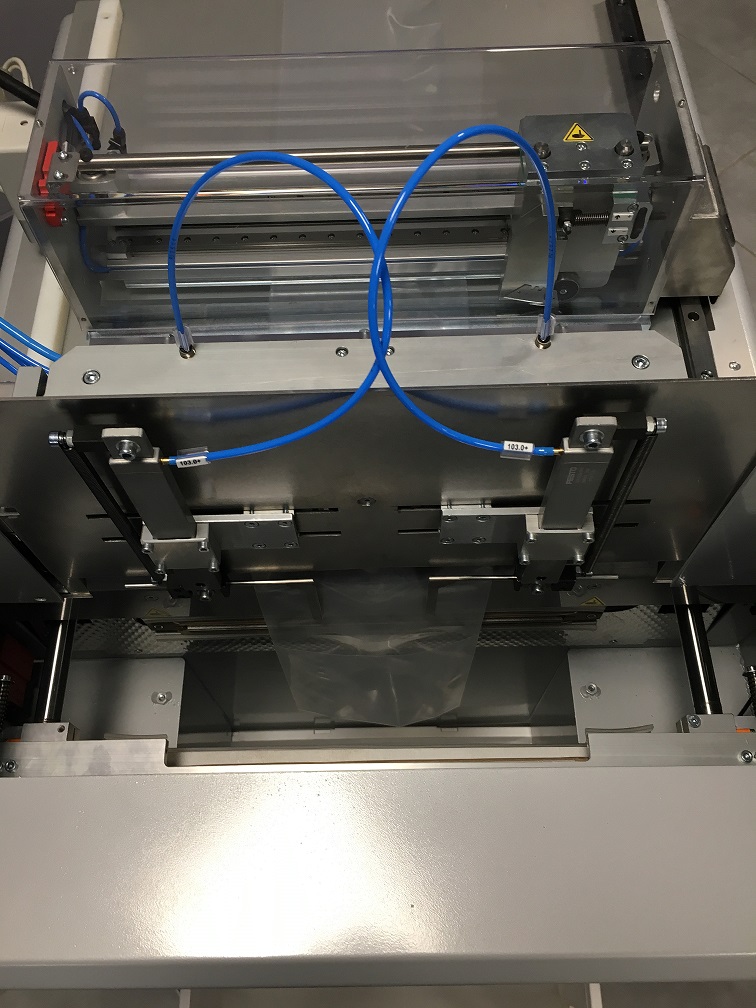

The material feed and pre-cutting station allows for the introduction of the product(s), followed by a sealing/cross-cutting operation controlled by three servomotors.

A touchscreen terminal allows for the control and adjustment of all machine parameters and saves them as a recipe.

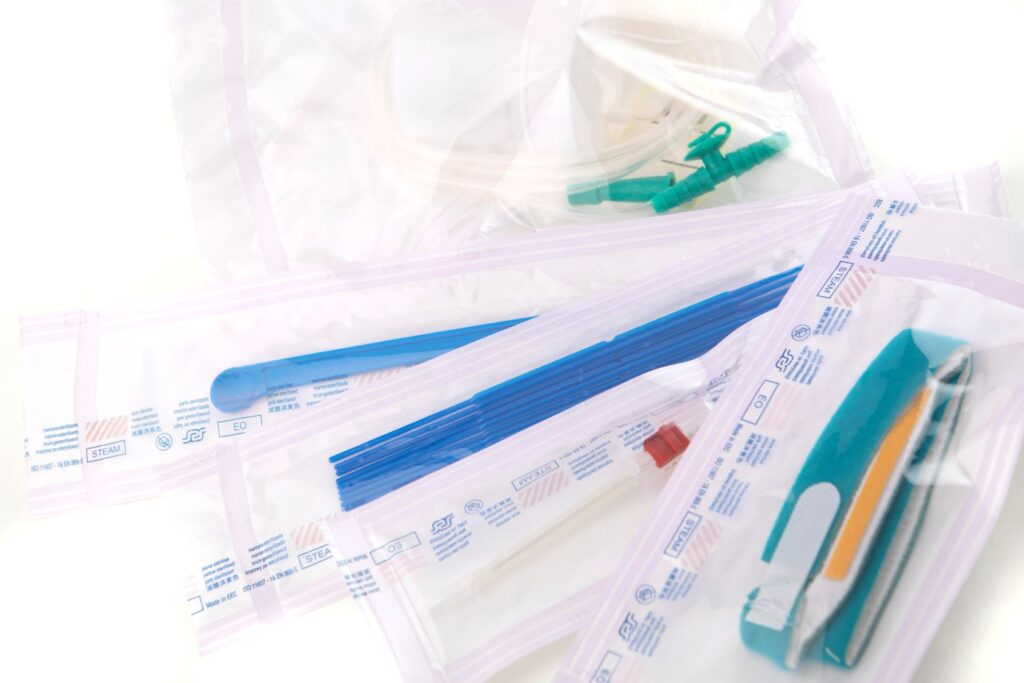

The machine allows for the packaging of one or more products in the same container, depending on the operator’s filling rate. The production of empty pouches is also possible.

This pouching machine is also available in a film-sealing version – VPM 300 PE – which operates using PE tubing rolls.

Specifications

• Packaging Dimensions:
  • – Width: 50 to 300 mm
  • – Length: 60 to 600 mm
  • – Product Thickness: up to 30 mm standard (or 80 mm optional)
• Pneumatic Pressure: 6 bar
• Power: 220 volts single phase, 50 Hz, 2 kW
• Capacity: up to 1,200 packages/hour
• Machine Dimensions: L 1.30 x W 0.70 x H 1.30 m
• Machine Weight: 250 kg

Sealing Pattern

• Straight
• Chevron

Options

• Product Infeed Conveyor
• Hanging Perforation
• Batch Counter
• Printing Device
• Labeling Device
• Longitudinal Sealing Unit for use with two rolls of material instead of a sleeve
• Other options available upon request
