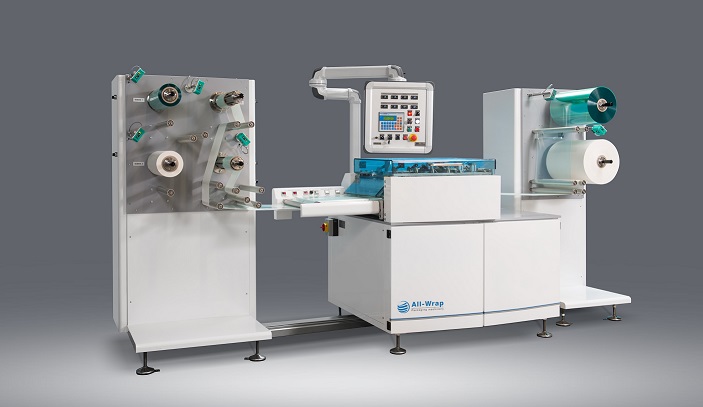

The machine produces sterilization sleeves from two rolls of paper and film, or other composites (please contact us).

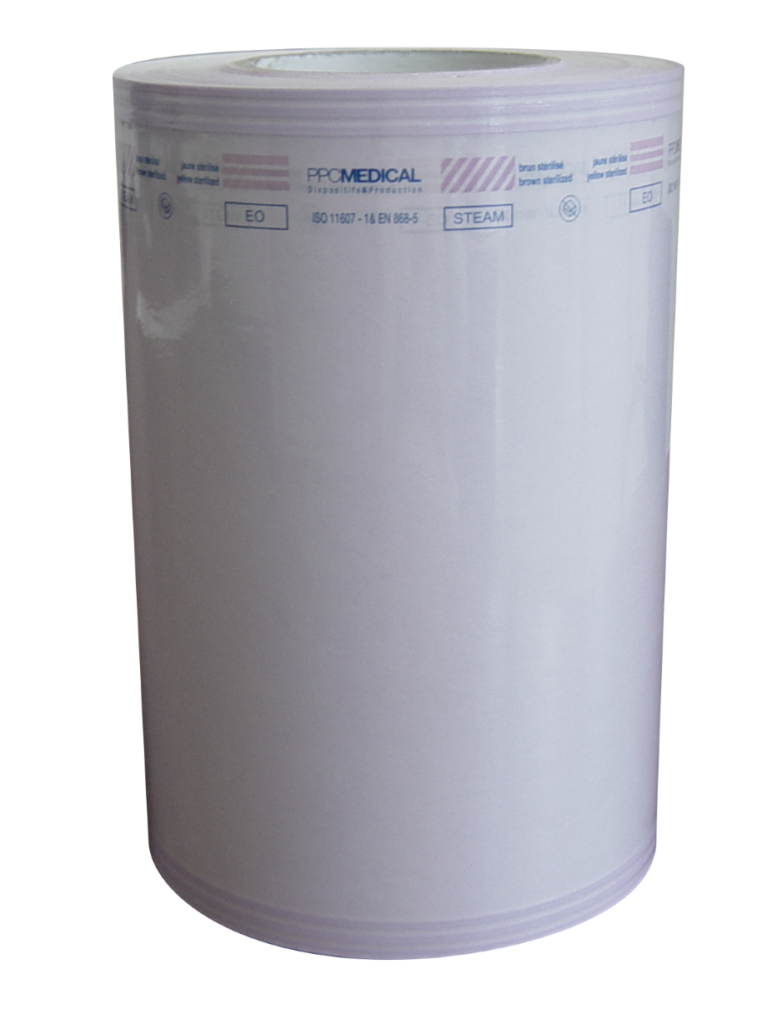

Hospital sleeves are produced using pre-printed paper with sterilization indicators.

The rolls, adjustable in length up to 200 m, are produced at speeds of up to 17 m/min, depending on the type of material used.

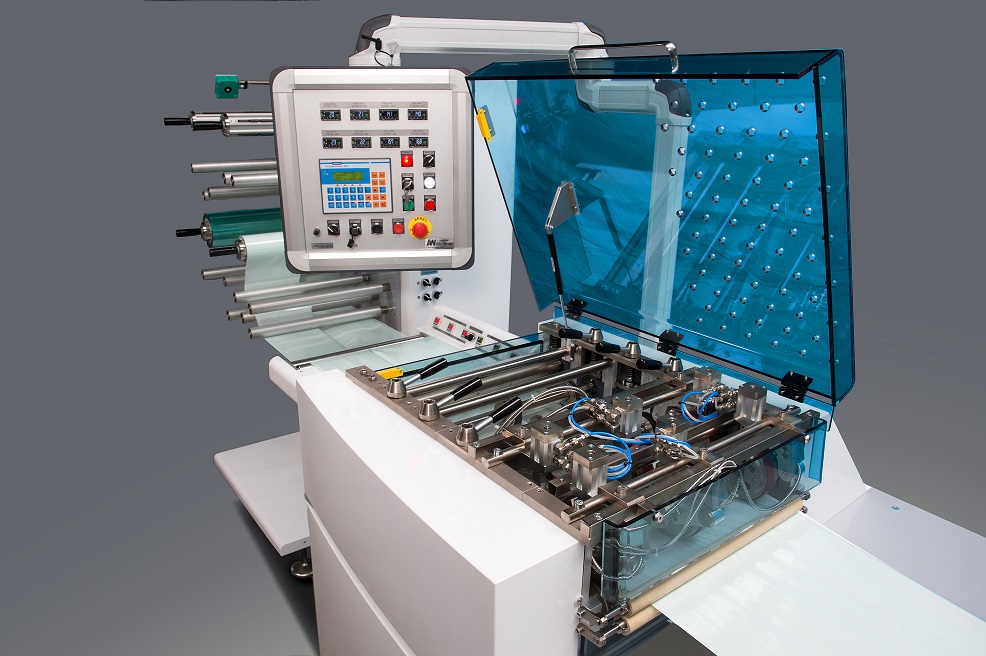

The fully servo-motorized winding station is equipped with two or four roll holders (optional) to double production.

Specifications

• Packaging Material: Paper/PET-PP or PET-PE, peelable Tyvek®/PET-PE, aluminum/aluminum, or other composites (please inquire)
• Sheet Dimensions:
  • Length: Up to 200 m
  • Width: 70 to 450 mm
• Pneumatic Pressure: 6 bar
• Power: 400 volts – 3.5 kW
• Machine Dimensions: L 3.52 x W 1.10 x H 1.85 m
• Machine Weight: 970 kg

Options

• Multi-lane version
• Automatic reel alignment system
• Printing device
• Other options available upon request
