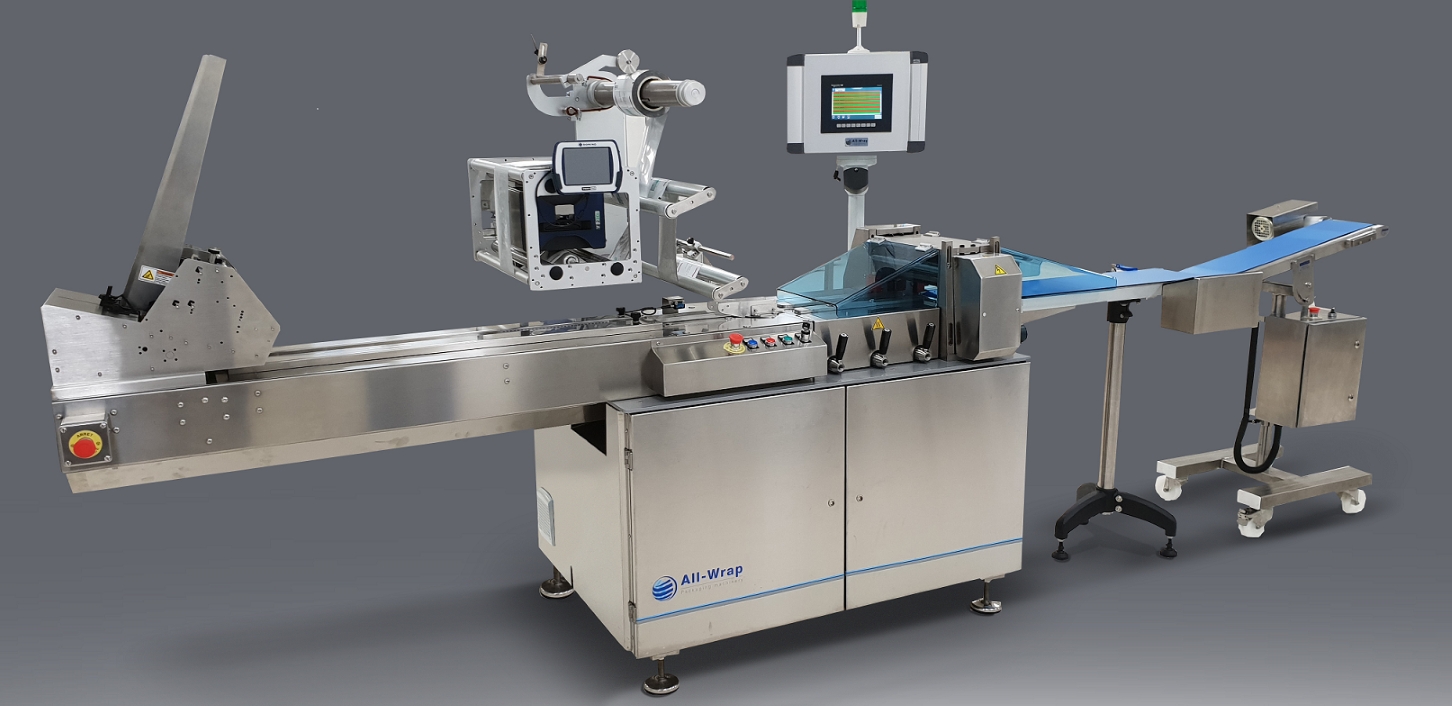

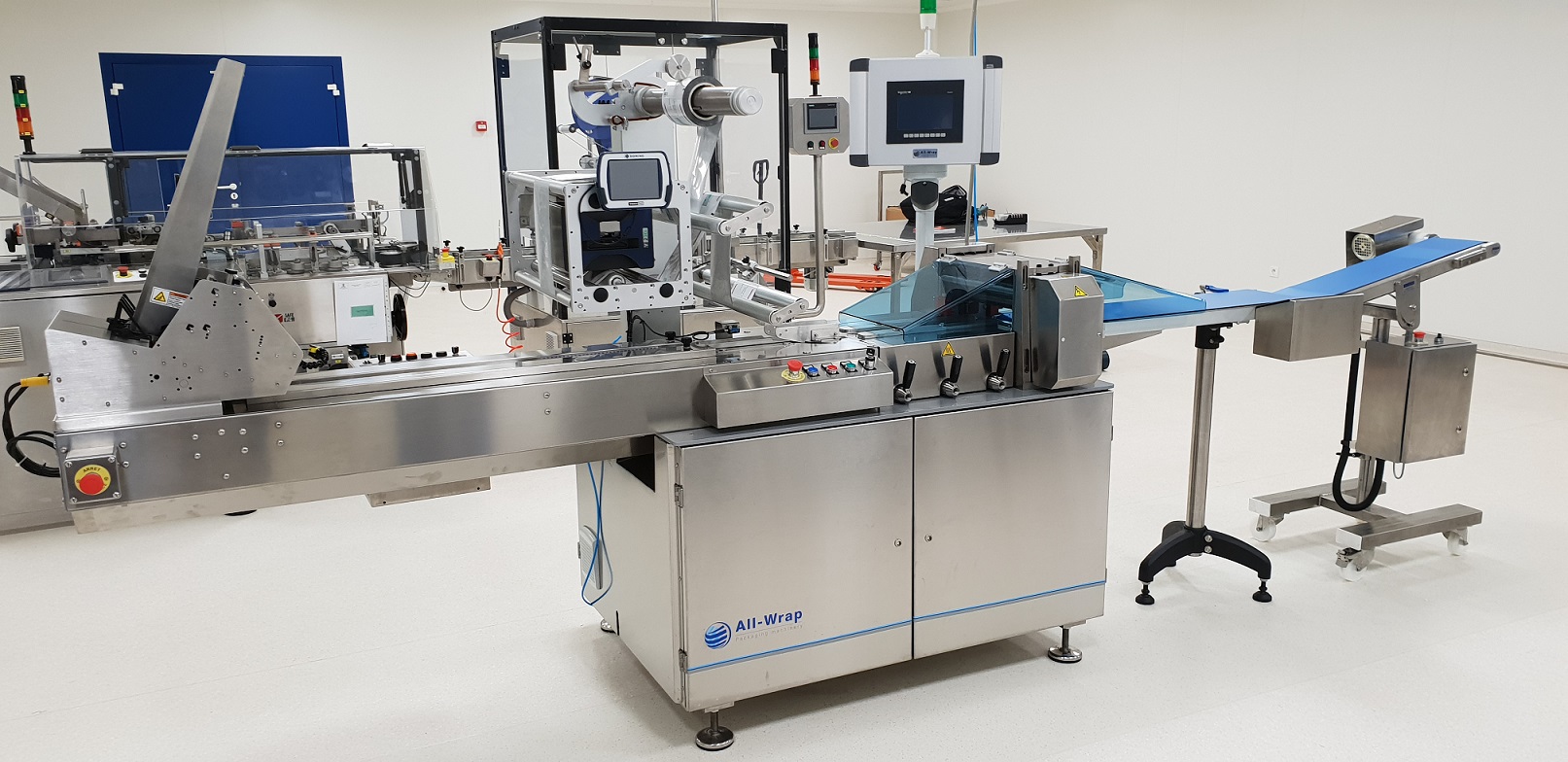

The horizontal 3-seal pouching machine is designed for the medical and pharmaceutical industries for packaging medical devices or various non-sterile products. Operating from a single roll of material (film or aluminized laminate), this machine can be equipped with an optional guide bar system for packaging bulky products.

Specifications

• Packaging Material: Any heat-sealable laminate (including polypropylene and aluminized materials) and cold-sealable material
• Reel: Diameter up to 350 mm, Width from 60 to 600 mm
• Pouch Width: H3SS 160: 30 to 150 mm, H3SS 270: 50 to 250 mm
• Pouch Length: H3SS 160: 50 mm to 500 mm, H3SS 270: 100 mm to 700 mm
• Product Thickness: H3SS 160: Up to 60 mm, H3SS 270: Up to 90 mm
• Production Speed: Up to 150 cycles/min
• Format Change (Length): Via pre-programmed settings
• Machine Dimensions: L 3.80 x W 1.00 x H 1.65 m
• Weight: 500 to 700 kg depending on the model

Standard Equipment

• Fully servo-driven machine
• Registration device for pre-printed material
• Two or three sets of sealing rollers depending on the products to be packaged

Options

• Guide bar system for bulky products
• Zigzag cutting
• Hanging hole
• Mitre notcher
• Automatic tensioning system
• Various printing devices
• Automatic feeding systems
• Stainless steel version
• Left-hand version
• Other options available upon request
